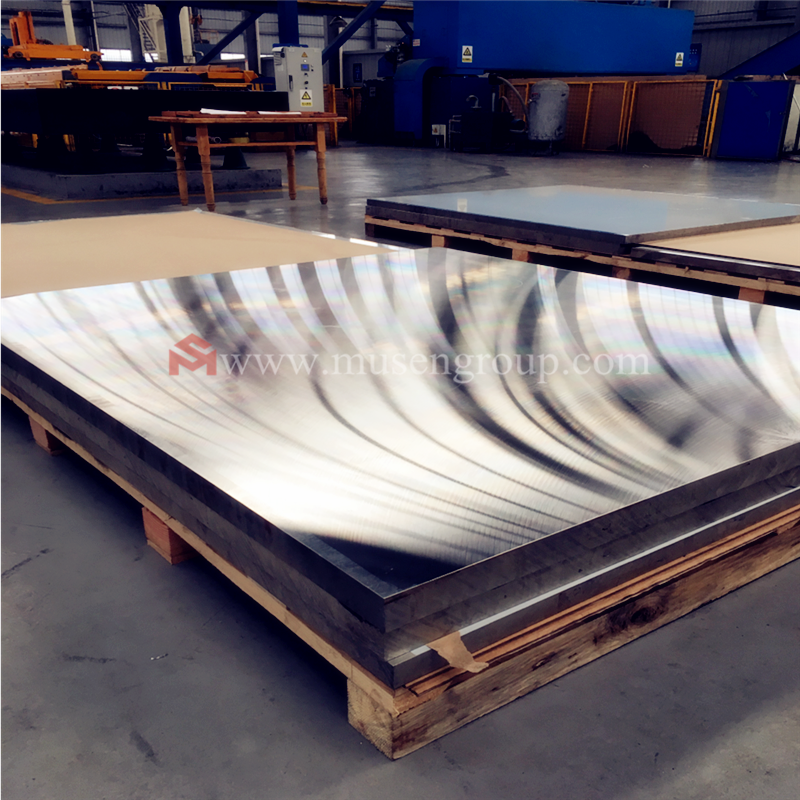

ACP5080,also called as Ultra-Flatness Precision Aluminum Plate in china,and our factory named it HCP 5A83, is a 5xxx series precision aluminum cast plate.
| Products |
ACP5080,HCP5A83,ATP-5,C250, |
| Alloy |
5083 |
| Process |
Homogenized and stress relieved |
| Minimum Order Quantity |
5000 Kilograms |
| Surface Finish |
High Speed Milling |
| Thickness |
5.0~100mm |
| Size/Dimension |
1570X3020,or CNC Cutting as per the orders |
| Usage/Application |

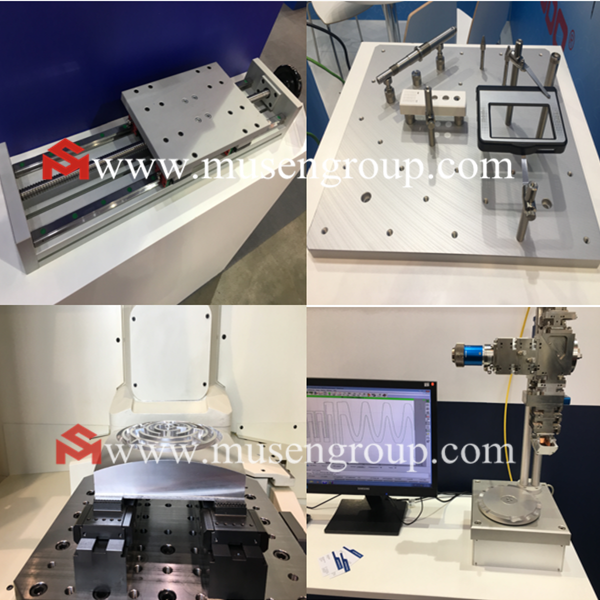

Moulding,fixtures,high precision machinery |
| Standards |
ASTM,EN,DIN,JIS, GB/T |
| Thickness of casting plate |
5.0~100mm |
|
| Thickness |
Width Range |
Length Range |
| 5mm~10mm |
30~1520mm |
30~3020mm |
| 10mm~15mm |
30~1570mm |
30~3670mm |
| 15mm~100mm |
30~1860mm |
30~4000mm |
| Size Tolerance |
|
|

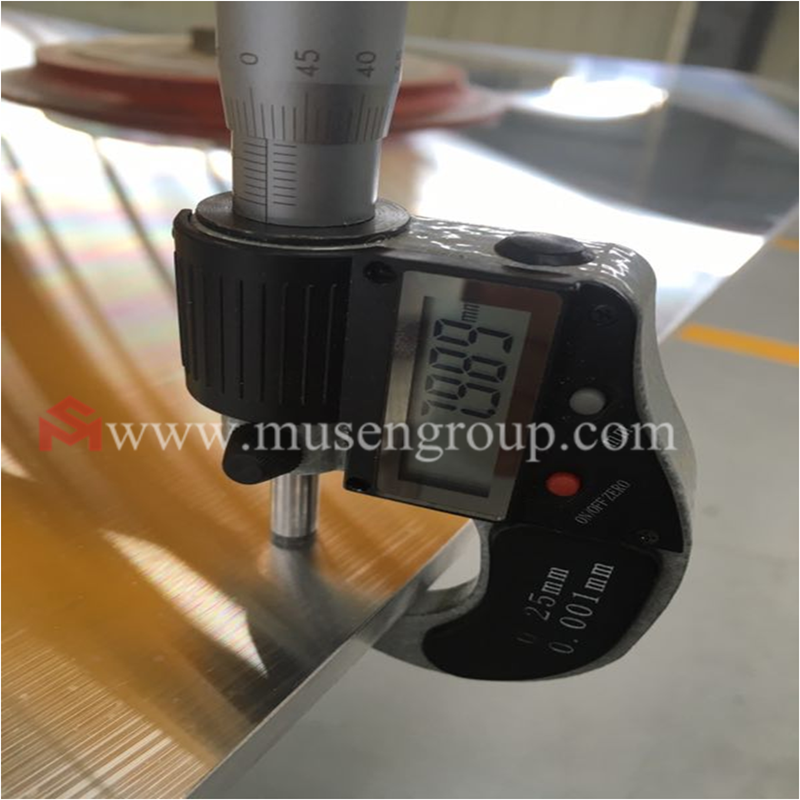

| Thickness tolerance |
-0/+0.05mm |
| Width tolerance |
±0.07mm |
| Length tolerance |
-0/+15mm |
Width/Length for small
cutting(＜300mm)tolerance |
±0.02mm |
| Flatness |
≤0.30mm/(6.0~12mm) |
| ≤0.12mm/㎡(12~100mm) |
| surface roughness(Ra) |
≤0.4um |
Properties
| Grade |
Units |
ACP5080 |
HCP5A83 |
| UltimateTensile Strength |
UTS |
290Mpa max. |
240-290Mpa |
| Yield Strength |
YS |
130Mpa max. |
110-130Mpa |
| Hardness |
HBW |
70 |
70 |
| Elongation at break |
% |
16% min |
12% min |
| Density |
g/cm³ |
2.66g/cc |
2.66g/cc |
| Thermal Conductivity |
一 |
109-140 W/m-k |
109-140 W/m-k |
| Electrical Conductivity |
一 |
|
16-19ms/m(m/Ωmm²) |
| Modulus of Elasticity |
一 |
70.0Gpa |
70.0Gpa |
