| Grade |
1070 |
| Temper |
O |
| Thickness (mm) |
3.0-12.0mm |
| Diameter (mm) |
13-88mm |
| Surface Treatment |
Tumbled, Mill finised |
| Surface Shape |

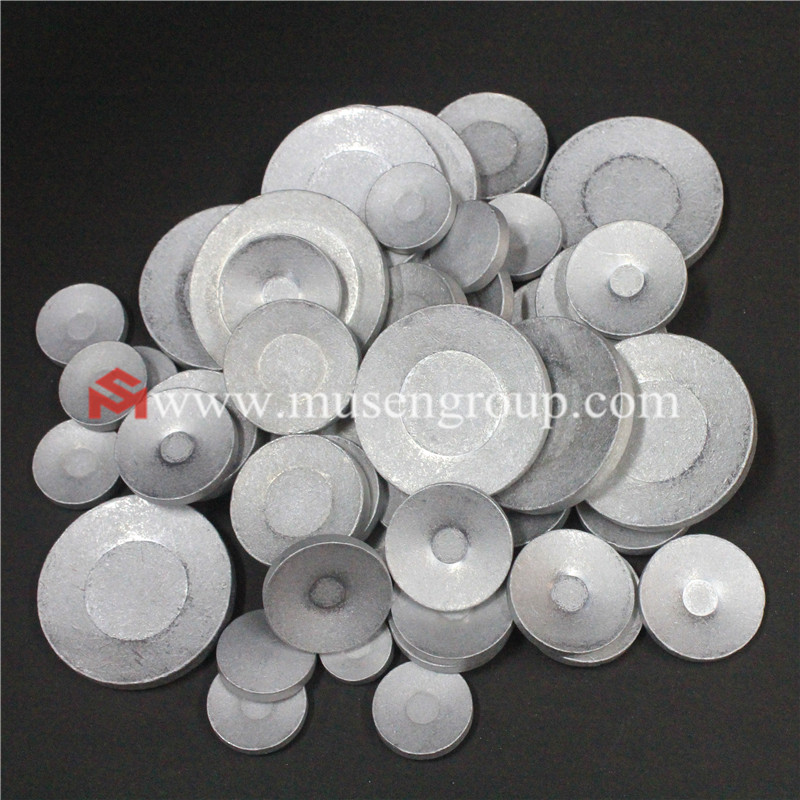

Flat, Domed, Camber |
| Payment terms: |
30% deposit+T/T or L/C |
| Delevery time: |
20~25 days after deposit received |
| Packaging details: |
With fiber bags or cartons(cardboard boxes), 20~25kgs/package. |
| Sample: |
1~25 kgs Available |
| Port of loading: |
Any port in China |
| Tolerance on diameter of surface treated slug |
| Slug diameter (mm) |
Tolerance (mm) |
Standard |
| Over |
Up to |
| — |
20 |
+0.03～－0.05 |
GB 231 / EN 570 |
| 20 |
60 |
+0.05～－0.09 |
| 60 |
— |
+0.07～－0.13 |
Remarks: Dimension tolerance of slug with other uses will be negotiated as per requirements.
| Tolerance on thickness of surface treated slug |
| Slug thickness (mm) |
Tolerance (mm) |
Standard |
| Over |
Up to |
| — |
6.5 |
+0.05～－0.05 |
GB 231 / EN 570 |
| 6.5 |
10 |
+0.07～－0.07 |
| 10 |
12 |
+0.10～－0.10 |
| Material designation and Brinell hardness after annealing |
| Material Designation |
Brinell Hardness (HB) |
| 1070 |
Tube |
17-20 |
| Aerosol can |
17-21 |
aluminium slugs for collapsible tubes
