3104H19 Aluminum coils for aluminum can body stocks for beverage cans 250ml/300ml/330ml/355ml/500ml
| Grade |
3104 |
| Temper |
H19 |
| Thickness Range(mm) |
0.26-0.28mm |
| Width (mm) |
750~2150mm |
| Surface Treatment |
lubricated-Henkel DTI-8100A / DTI-PLA |
| Application |
for beverage cans,ring-pull cans,pop-top cans,zip-top cans |
| Payment terms: |
30% deposit+T/T or L/C |
| Delevery time: |
45 days after deposit received |

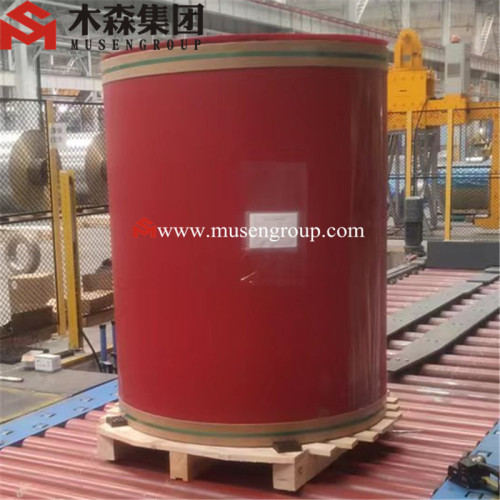

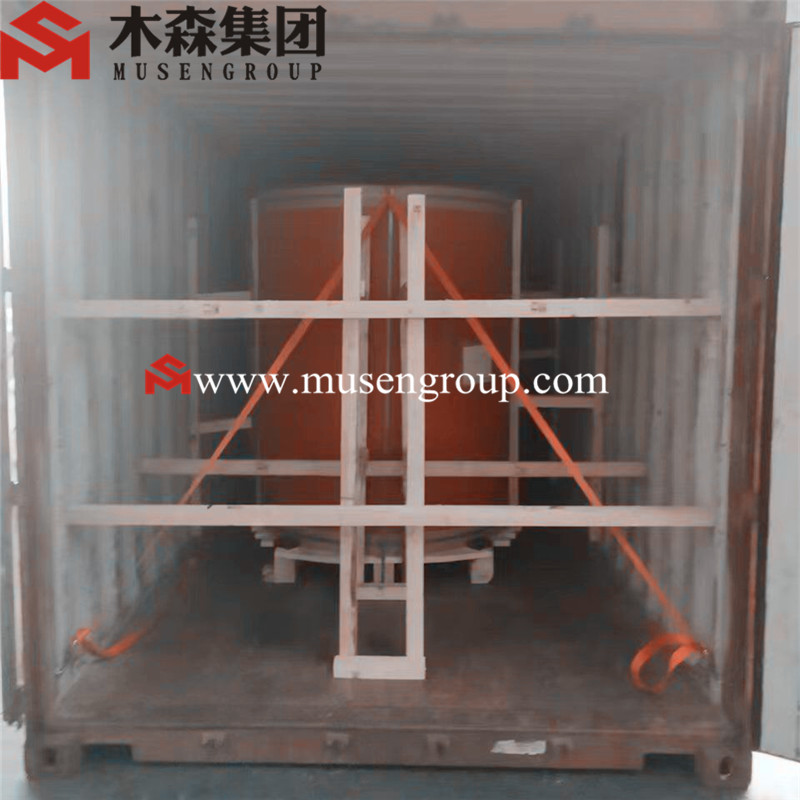

| Packaging details: |
Wooden pallet,stand sea-worthy |
| Sample: |
18~20 tons for small trial order |
| Port of loading: |
Any port in China |
| Aluminium Coil for can body stocks |
| Alloy |
Temper |
Specification(MM) |
| Thickness |
Inner core |
| 3104 |
H19 |
0.26~0.28 |
2-piece paper core 400mm/405mm/406mm |
| Aluminium Sheet Coil for can end stocks |
| Alloy |
Temper |
Specification(MM) |
| Thickness |
End use |
| 5052 |
H48 |
0.2~0.28mm |
caps,cover, can end stocks |
| 5182 |
H48 |
0.2~0.28mm |
caps,cover, can end stocks |
| 3104 |
H48 |
0.2~0.28mm |
caps,cover, can end stocks |
| Alloy&Mechanical Properties |
| Alloy |
3104 |
Alloy |
5182 |
| Temper |
H19 |
Temper |
H48 |
| Tensile Strength (Mpa) |
≥290 |
Coated Tensile Strength (Mpa) |
≥370~430 |
| Yield Strength (Mpa) |
≥265 |
Coated Yield Strength (Mpa) |
≥310~370 |
| Elongtion(%) |
≥4.0 |
Coated Elongtion (%) |
≥5.0 |
| Earing |
≤3.0 |
Earing |
≤3.0 |
1.1 Alloy：AA3104 H19
| Alloy |
Chemical Composition(%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
Al |
| Single |
Total |
| 3104 |
≤0.6 |
≤0.8 |
0.05~0.25 |
0.8~1.40 |
0.8~1.30 |
- |
≤0.25 |
≤0.10 |
≤0.05 |
≤0.15 |
Remainder |
1.2 Alloy：AA5182 H48
| Alloy |
Chemical Composition(%) |
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
Al |
| Single |
Total |
| 5182 |
≤0.2 |
≤0.35 |
≤0.15 |
0.2~0.50 |
4.0~5.0 |
≤0.10 |
≤0.25 |
≤0.10 |
≤0.05 |
≤0.15 |
Remainder |
