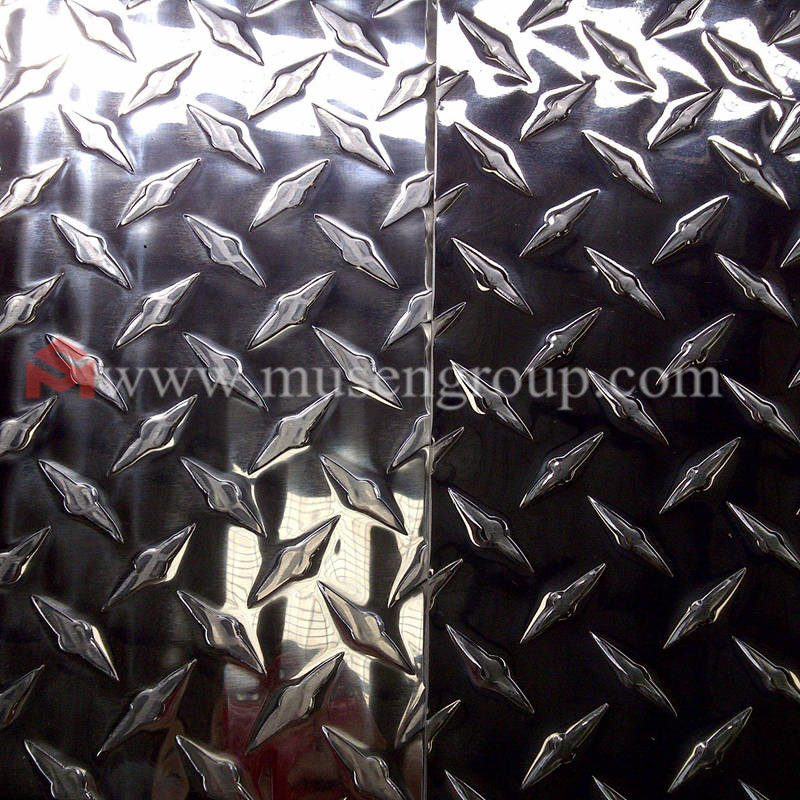

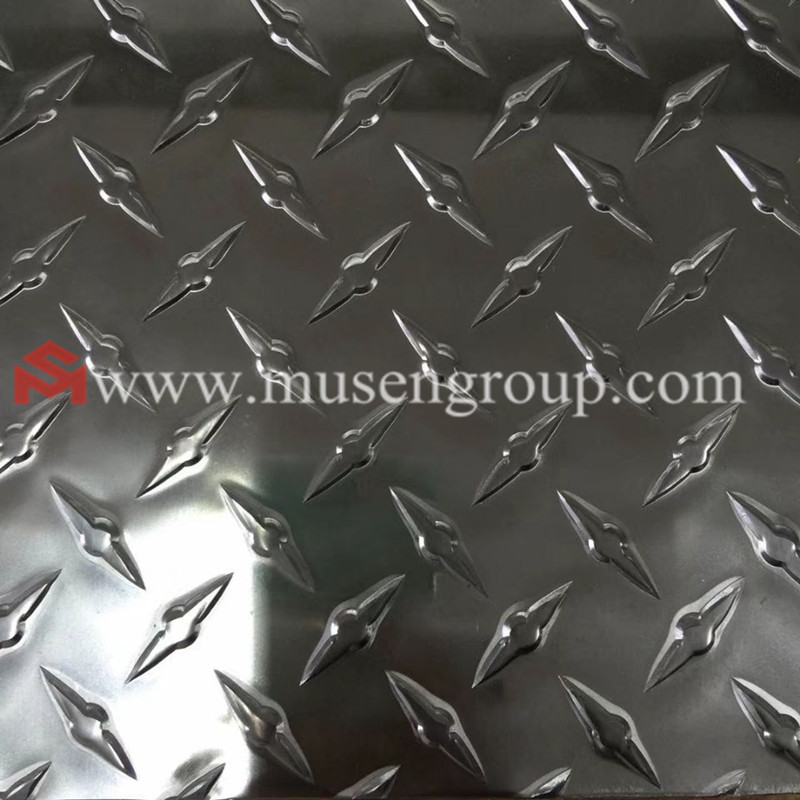

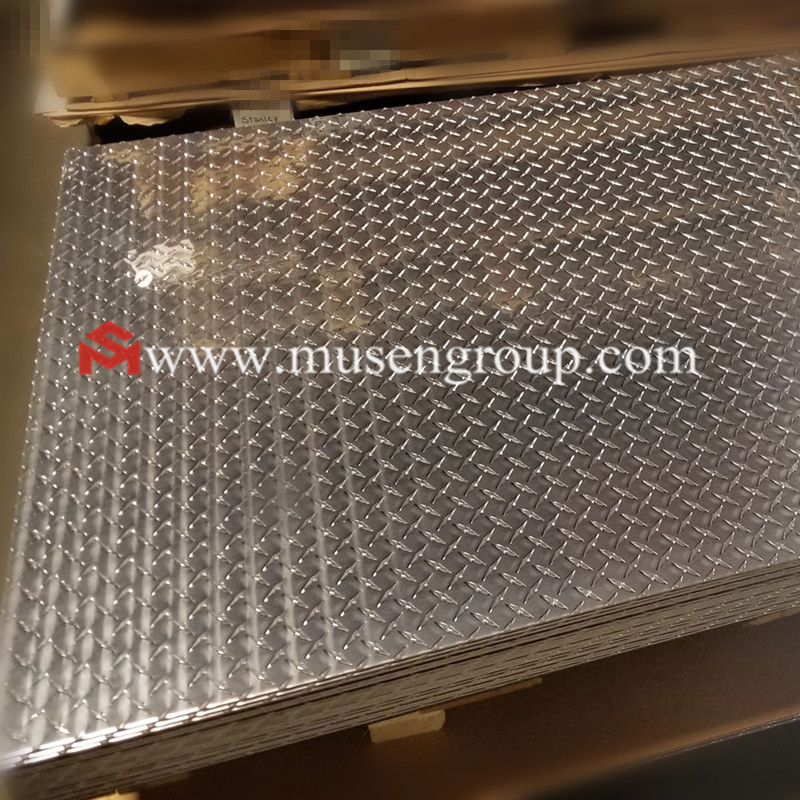

Aluminum Diamond Plate, Aluminum Tread Plate, Aluminum chequered plate,Tread Bright,mirror finished, this highly reflective, economical product is widely used in decorative, cosmetic and architectural applications.
Product Details:
| Alloy |
1050、1060、1100、3003、3105、5052、5754、5083 |
| Temper |
O,F,H14,H16,H32,H34,H111,H112,H116 |
| Minimum Order Quantity |
5000~8000 Kilograms |
| Chequers Options |
5 Bar Chequers, 3 Bars, 2 Bars, 1 Bar, Diamond, etc. |
| Thickness |
0.8mm - 8.0 mm |
| Size/Dimension |
4'X8',5'X10' Or as per orders. |
| Usage/Application |
Anti-slip,Vehicle ground,shipbuilding,decoration. |
| Standards |
ASTM-B209. EN573-1, GB/T3880 |
| Alloy |
Temper |
Pattern |
Thickness (mm) |
Standard Width(mm) |
Length(mm) |
| 1050/1060/1100 |
O,F,H12,H14,H16,H18
H22,H24,H26 |
Diamond,1-bar,
5-bar(L),5-bar(S) |
0.8~5.0mm |
1000~1500 |
1000~4000 |
| 3003 |
O,H12,H14,H16,H18
H22,H24,H26 |
Diamond,1-bar,
5-bar(S) |
1.0~8.0mm |
1000~2000 |
1000~4000 |
| 3105 |
O,H12,H14,H16,H18
H22,H24,H26 |
Diamond,1-bar,
5-bar(S) |
1.0~8.0mm |
1000~2000 |
1000~4000 |
| 5052 |
O,F,H32,H34,H112 |
Diamond,5-bar(S) |
1.6~8.0mm |
1000~2000 |
1000~4000 |
| 5754 |
O,F,H111,H112 |
Diamond,5-bar(S) |
1.6~8.0mm |
1000~2000 |
1000~4000 |
| 5083 |
O,F,H111,H112 |
Diamond,5-bar(S) |
1.6~8.0mm |
1000~1500 |
1000~4000 |

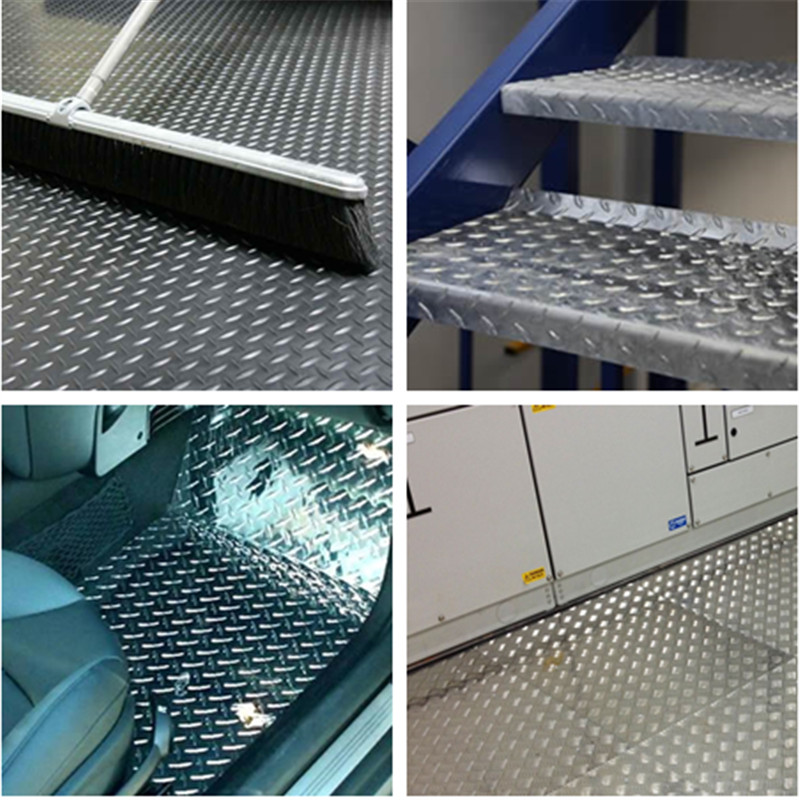

APPLICATION PROJECTS:
1.checker plate floor in vehicles
For van-type vehicle catwalk flooring, step of the bus or truck, train inspection hole lid and tank car. the machined part, deep-drawn or spinned part, welded part and heat exchanger of the cars. fire trucks and truck toolboxes.
2.non-slip for Shipbuliding
5000 series aluminum alloy has corrosion resistance in seawater, hence, in ship-building industry,fabricating of ship decking, passageway,corridor floor,stairs &stairway, warehouse flooring, bridges floors,cabin deck, gangway to the floating docks, etc,can find our Anti Slip Checkered Aluminum Plate.
3.Architectures and Plants Building :
Decorative pattern enable Aluminum Diamond Plate to be utilized in architectural designs for architectural floors, stairs, shelves, wall tiles & splashbacks, counter tops & work surfaces, wall cladding, elevator screens, panelling kitchen & bathroom accessories, shop decoration, bar decoration, etc.
Aluminum Checkered Plate is applied to make bench floor and stairs for equipment or plant machinery.
